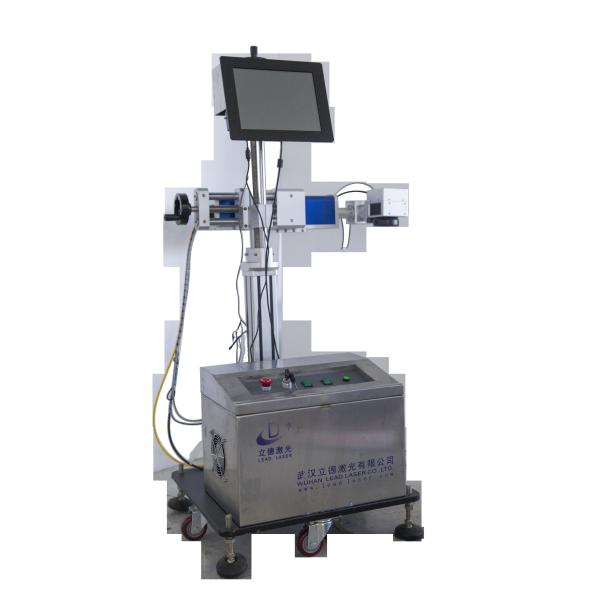

LD-FEM-UV3020 20W Flying Style UV Laser Marking Machine For Foodstuff Plastic Packaging Materials
The fiber laser marking machine is portable type designed for efficient processing of marking on metal,plastics, leather,ceramic and many more. Available in different workstations sizes with several power options, these laser markinging systems provide high-quality results at maximum speed.
new type of laser marking machine innovated and developed according to the developing market needs. We use the most advanced laser marking system -- high-speed scanning galvanometer laser marking. This system has advantages of fast scanning speed, high repetition accuracy, good durability, etc., able to ensure the quality and nice look of the laser markings, especially suits for mass production and pipeline operations.
Parameter:
| Machine model number: |
LD-FEM-UV3020 |
| Laser Power: |
15W |
| Laser wavelength |
355nm |
| Laser beam Quality: |
M2:＜1.5 |
| Laser Repeat Frequency: |
≤100kHz |
| Standard Marking Range: |
100x100mm ( Static status) |
| Marking Speed |
0-40m/minute on line height 3mm 8-30 characters. |
| Min. Characters |
1.5mm |
| Repeatability: |
±0.001mm |
| Cooling System: |
Air cooler + Water cooler |
| Power Supply |
AC220V/Single phase/50Hz/10A 1KW |
| Maintenance: |
Daily Free |
| Working Method: |
EZCAD Program, Operating Computer Controlled |
| Machine Size: |
650x800x550mm |
Machine features:
(1) Laser marking technology in the above mentioned applications has the following features;
(2) Better flexibility (computer programmed, free to mark a variety of graphics, texts and other kinds of information);
(3) Higher precision, consistent marking quality;
(4) Markings are permanent with high abrasion resistance;
(5) Lower use-cost, higher speed, higher production efficiency;
(6) Little pollution, environmentally friendly;
(7) Anti-counterfeiting function. Applicable materials:Gold, silver, copper, aluminum, stainless steel, hard alloy, chrome, titanium and other metals, ceramic, PVC, plastic, epoxy resin, leather and other non-metallic materials.
